Product Introduction

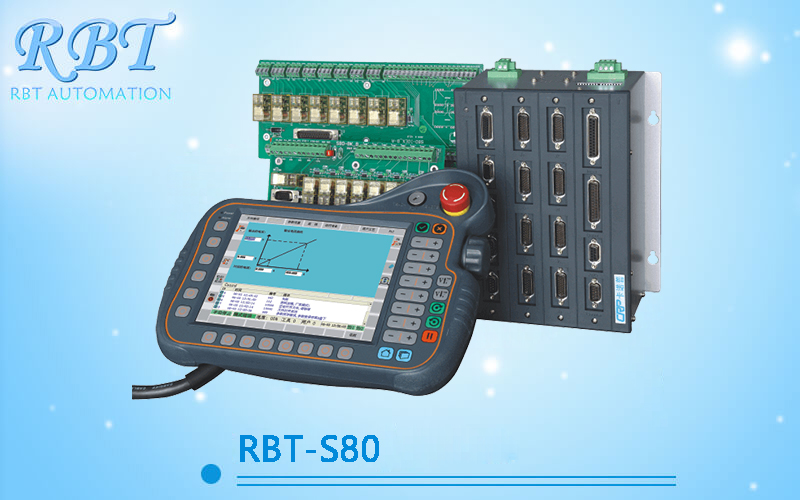

RBT-S80 industrial robot control system adopts international popular open software and hardware platform.Equipped with independently developed special multi-axis motion control card, data acquisition card, robot special terminal and security interface;Modular software design, for different ontology structure, application industry, function, etc.It can realize the control of vertical multi-joint tandem robot, vertical multi-joint parallelogram robot, vertical multi-joint L-shaped wrist robot, vertical multi-joint spherical wrist robot, polar coordinate robot, multi-axis special machine and other robots.Used in handling, welding, spraying, stacking, cutting, polishing and polishing fields.The standard computer bus can extend the field bus, machine vision system and so on.
Model Coding
| Symbol | Series |
|---|---|
| RBT-S40 | 4-axis pulse series |
| RBT-S80 | 8-axis pulse series |
| RBT-S100 | ECAT series |
| RBT-SA40 | 4-axis series |
| RBT-SA60 | 6-axis series |
| RBT-SA80 | 8-axis series |
| RBT-SA100 | ECAT series |
Product Application
Technique Feature
· Optimized structure algorithm and adapted to ontology control of various structure forms
· Modularized functional Settings suitable for a variety of applications
· 8 axis control, which can realize the control of external axis (walking axis, positioner)
· Improved computer bus connection to ensure reliability and practicality
· Open structure, synchronous international level, convenient function expansion
· Software PLC function, convenient logic control
· Process function, simple programming and easy operation
· EtherCAT servo adaptation
· Safety module to ensure safe production of robots
Technical parameters
| Teach pendant | 8 inches TFT-LED, keyboard + touch screen, mode selection switch, safety switch, emergency stop button |
|---|---|
| Control shaft number | 6+2 axis，6 body axis +2 external axis |
| Storage Spaces | 200M |
| Safety module | Emergency stop, abnormal signal to ensure the robot to stop quickly |
| Control servo | Absolute incremental, domestic, Panasonic, Fuji, Tama Chuan, Delta, Yaskawa, Mitsubishi, Yamagata |
| Interface | Digital I/O interface, 24 input/24 output, Ether CAT Control servo |
| 4-way 0-10V analog output, 12-bit accuracy | |
| 2-channel encoder signal interface (position tracking) | |
| Ethernet interface,（RS232，485，422）interface | |
| Operation mode | Teach, reproduce, remote |
| Program method | Teaching reproduction, process programming(Gluing, tracking, vision, remote, stamping) |
| Control method | Position control |
| Coordinate Systems | Joint coordinates, base coordinates, user coordinates, tool coordinates |
| Software PLC | Trapezoidal map editing,5000 step |
| Applications | Welding, cutting, handling, palletizing, machine tool loading and unloading, spraying, forging and pressing, casting and other fields or industries |
| Power | AC220V±15% 50/60Hz 200W |
| Size | 234*195*104mm |
